Nylon Hydraulic Hose Abrasion Protection Sleeving

Brand: E-Flex
Product origin: China
Delivery time: 10-15 days
Supply capacity: 5000000Meters/Month
MOQ: 1000m

Nylon hydraulic hose abrasion protection sleeving is made from a high-strength nylon material that is specifically designed to protect hydraulic hoses from abrasion, wear, and tear. This product is incredibly easy to install and can be used for a variety of hydraulic hose types and sizes.

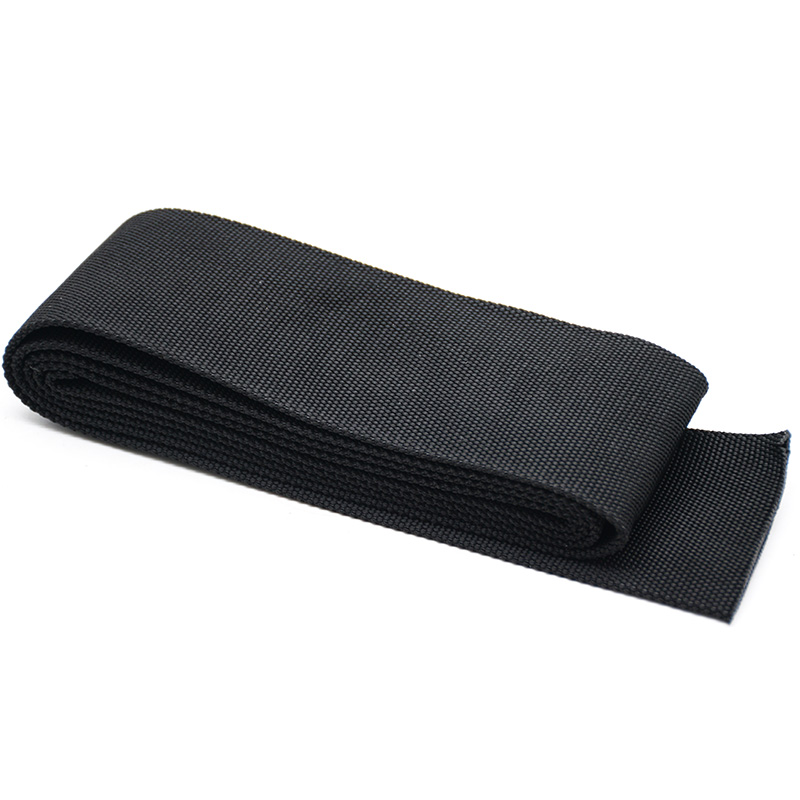

hydraulic hose protective sleeve nylon hose sleeve

▎NYLON HYDRAULIC HOSE ABRASION PROTECTION SLEEVING

hydraulic hose protective sleeve is a high-quality product designed to protect hydraulic hoses from damage caused by abrasion, thus prolonging the life of the hoses and reducing maintenance costs. The nylon hose sleeve is made from high-strength nylon fibers that provide excellent resistance to abrasion, cuts, and punctures. The hydraulic hose sleeves is easy to install and can be used for both indoor and outdoor applications.

▎PRODUCT FEATURES

Made from high-strength nylon fibers that provide excellent resistance to abrasion, cuts, and punctures.
Designed to protect hydraulic hoses from wear and tear caused by abrasion, prolonging the life of the hoses and reducing maintenance costs.
Easy to install and can be used for both indoor and outdoor applications.
Can withstand temperatures ranging from -40°C to 125°C, making it suitable for use in a wide range of environments.

▎PHYSICAL PROPERTIES

Material:	Nylon multifilament
Working Temperature:	-40'℃ to +125℃
Melt Point:	220±10℃
Flammability:	FMVSS 302, MSHA
Standard Color:	Black
Certification:	ROHS, Reach
Cutting Tool:	Hot knife, Scissor

▎PHYSICAL PROPERTIES

The nylon protective hose sleeve is ideal for use in a variety of applications, including:

Agriculture machinery
Construction equipment
Mining and quarrying equipment
Transportation equipment
Industrial machinery

Overall, the hydraulic hose abrasion sleeve is a must-have for anyone looking to protect their hydraulic hoses from damage caused by abrasion. With its high-strength nylon fibers, easy installation, and wide range of applications, this product is sure to provide long-lasting protection for your hydraulic hoses.

▎APPLICATION

Nylon protective sleeve ideal for use as a protective covering on hydraulic and industrial hose,pipe,

Protects hose from abrasion and degradation
Offers limited protection from the effects of hose bursting and pinhole occurrences
Allows bundling of hose, cable, rope, chain, wire, etc.

hydraulic hose sleeves

▎DATA SHEET

PART NO	FLAT WIDTH (MM)	ID (MM)	THICKNESS (MM)	PACKING
PART NO	FLAT WIDTH (MM)	ID (MM)	THICKNESS (MM)	(M/L)
MJ-NHPS020	20.0	12.0	1.2	100m/spool
MJ-NHPS025	25.0	15.0	1.2	100m/spool
MJ-NHPS030	30.0	18.0	1.2	100m/spool
MJ-NHPS035	35.0	21.0	1.2	50m/spool
MJ-NHPS040	40.0	24.0	1.2	50m/spool
MJ-NHPS045	45.0	28.0	1.2	50m/spool
MJ-NHPS050	50.0	31.0	1.2	50m/spool
MJ-NHPS060	60.0	37.0	1.2	50m/spool
MJ-NHPS070	70.0	44.0	1.2	50m/spool
MJ-NHPS080	80.0	50.0	1.2	50m/spool
MJ-NHPS090	90.0	56.0	1.2	50m/spool
MJ-NHPS100	100.0	62.0	1.2	50m/spool
MJ-NHPS115	115.0	72.0	1.2	50m/spool
MJ-NHPS145	145.0	90.0	1.2	50m/spool
MJ-NHPS176	176.0	110.0	1.2	50m/spool
MJ-NHPS200	200.0	125.0	1.2	50m/spool

▎QUALITY CONTROL

Cost Of Poor Quality:<2.5%

On-Time Delivery:100%

Custom Satisfaction:>98%

Delivery (ppm)<900

Delivery (ppm)<35 (for automobile customer)
